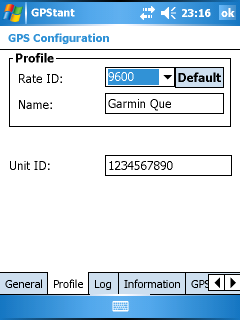

Profile
On this tab the profile data for a configuration used by a specific GPS client program are defined.
Rate ID
Data rate of the actual adjusted profile of GPStant. Normally the GPS client program is able to adjust a data rate for the GPS receiver what chooses here the corresponding profile. It is possible to define at total up to nine different profiles by the data rates 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 or any other data rate.
∆ Que 2.90 from Garmin adjusts always the data rate with 9600 baud.
Default
If this button is used the actual profile will be set to the default configuration. This configuration may be saved before by the test function.
Name
Defines the name of the profile with up to 16 characters. This name has the only funtion to inform the user of GPStant about the purpose of this profile.
Unit ID
If you want to use a Garmin map registered for a specific Garmin receiver then its unit ID can be entered here.
 Please respect my license terms for GPStant not allowing to use it with software or maps without valid license.
∆ This input is only enabled for the rate ID 9600.
